FB50 5 Ton Electric Forklift
Details
Model：
FB50
Rated Capacity:
5000kg
Loading Center:
600mm
Battery：
Lead-Acid/Lithium
Origin：
China
● The FB50 electric forklift is designed for heavy-duty indoor material handling applications requiring high lifting capacity, operational stability, and efficient electric performance. Its reinforced structural frame and advanced AC motor system provide stable traction, smooth steering response, and reliable handling capability for factories, logistics centers, industrial warehouses, and cargo transportation operations.
● With optimized hydraulic lifting systems and high-capacity battery configuration, the FB50 supports continuous industrial handling tasks while maintaining lower energy consumption and quieter operational performance compared with traditional fuel forklifts.
Application：
- Warehouse
- Logistics Center
- Cargo Handling
Why Choose FB50 Electric Forklift
Advanced AC Electric System
Modern 3-phase AC technology improves operational efficiency, energy utilization, and overall driving performance.
Intelligent Display Interface
Clear operating information and fault code display help improve monitoring convenience and operational control.
Energy-Saving LED Lamps
Full LED lighting systems provide brighter visibility while reducing energy consumption during operation.

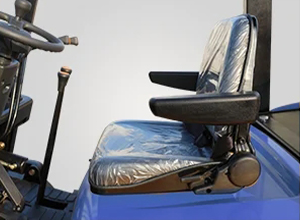

Comfortable Driving Space
Spacious operating layout and ergonomic seating improve comfort during long working hours.
Stable & Durable Mast
Advanced welding technology and optional German U-steel mast improve structural stability and durability.
Large Capacity Battery
High-capacity battery systems support longer operation time and stable daily handling performance.
Technical Parameters Of Electric Forklift
| Item | FB50 |
|---|---|
| Load Centre (mm) | 600 |
| Rated Capacity (kg) | 5000 |
| Max. Lift Height with Load Backrest (mm) | 4160 |
| Fork Size (L×W×T) (mm) | 1070×125×45 |
| Motor Type | DC / AC Motor |
| Length Without Fork (mm) | 2507 |
| Overall Width (mm) | 1220 |
| Wheelbase (mm) | 1600 |
| Driven Motor Power (kW) | 16.6 |
| Lift Motor Power (kW) | 13.5 |
| Battery Voltage/Capacity (V/Ah) | 80/500 |
More Details Of Electric Forklift
Every structural component and operating system of the FB50 electric forklift is designed to improve handling stability, operational efficiency, and long-term durability for demanding industrial working environments.

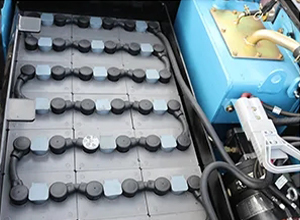

Battery System
Hydraulic System
Lighting System

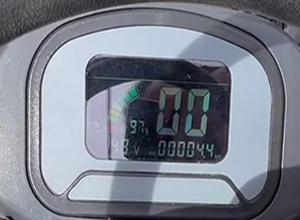

Display
Stable Mast
Security System
How We Manufacture Forklifts
Every forklift undergoes standardized manufacturing, assembly, and inspection procedures to ensure stable quality, reliable performance, and long-term durability.
